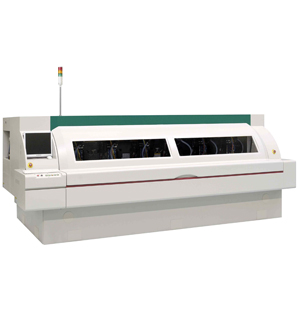

ND-6QSA210E / 6MSA210E

High-speed & Accuracy with High-speed spindle

ND-6QSA210E / 6MSA210E

High-speed and high-accuracy drilling with linear air bearing Z-bush structure in the direct drive. Hovering function to improve productivity as the standard specification, making the best of our servo control technology.

  • Drill Diameter

    0.075 - 4 mm

  • SP speed

    300,350k rpm

  • PC/Motherboard
  • HDI
  • BGA
  • CSP
  • FC-BGA
  • Aoutomotive
  • Specification
  • Product Type ND-6QSA210E ND-6MSA210E
    Number of Stations / Spindle Spacing 6 stations / 538mm(21.2inch)
    Max. Drilling Area 660mm×538mm(26.0 inch×21.2 inch)
    Spindle UH35Z(φ2.0 Shunk)30,000~350,000min-1 H930Z(φ3.175 Shunk)20,000~300,000min-1
    Drill Diameter φ0.075~φ4.0mm
    Number of ADC 300 kinds 1050 tools / axle 250 kinds 250 tools / axle
    X,Y axis Feed Rate 60m/min
    Z axis Feed Rate 0.101~12.7m/min
    X,Y axis Positioning Accuracy ±0.004mm
    Drilling Accuracy ±0.015mm
    CNC MARK-50+
