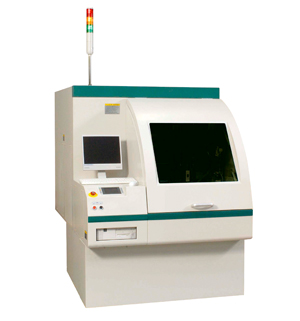

ND-1S Series

Single-axis Mechine for Flexible Production

ND-1S Series

The vision system for corrective process for X,Y, θ axes coordinate and the high-precision process, such as back-drilling and flip-flop process. Various processing with a variety of application; QIC function, Counterbore function.

  • Drill Diameter

    0.1-6.35 mm

  • SP speed

    160,200k rpm

  • PC/Motherboard
  • HDI
  • BGA
  • CSP
  • FC-BGA
  • Aoutomotive
  • Specification
  • Product Type ND-1S211E ND-1S281E
    Number of Stations 1
    Max.Drilling Area 690mm×535mm
    (27.2inch×21.1inch)
    935mm×735mm
    (36.8inch×28.9inch)
    Spindle H916:15,000~160,000min-1
    H920:20,000~200,000min-1
    Drill Diameter Φ0.1~φ6.35mm
    Number of ADC 300 kinds 300 tools / axle
    XY axis Feed Rate 60m/min
    Z axis Feed Rate 0.101~12.7m/min
    X,Y Positioning Accuracy ±0.004mm
    Drilling Accuracy ±0.018mm
    CNC MARK-50+
